Our Products

Positive Displacement Blowers and Vacuum Pumps

Brands

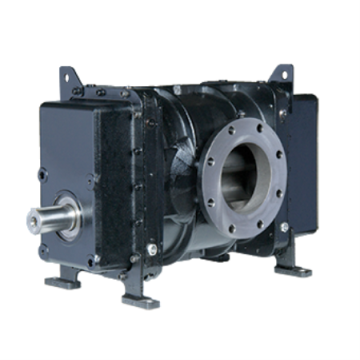

Positive Displacement Blower Bareshaft Trilobe

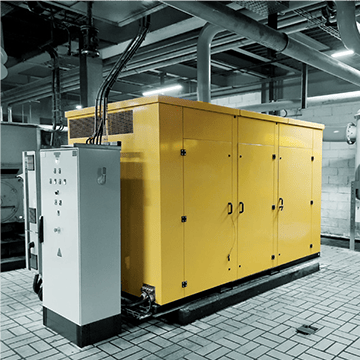

Vacuum air injection blowers package

Three lobe positive displacement blower air package

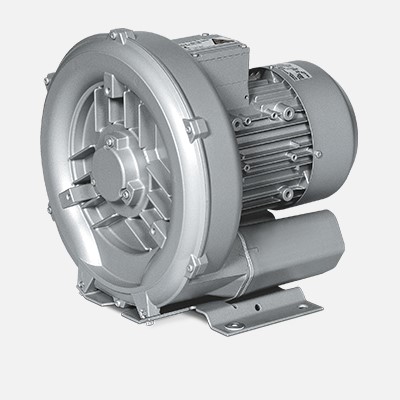

Vacuum pumps

Valve

KDV Diaphragm Valves

KDV’s Diaphragm Valves offer excellent resistance to corrosion and abrasion. Available in Weir and Straight-through types, made from durable materials like stainless steel,glass and PVC, ensuring versatility, longevity, and low ownership costs for industrial applications.

F.R.I

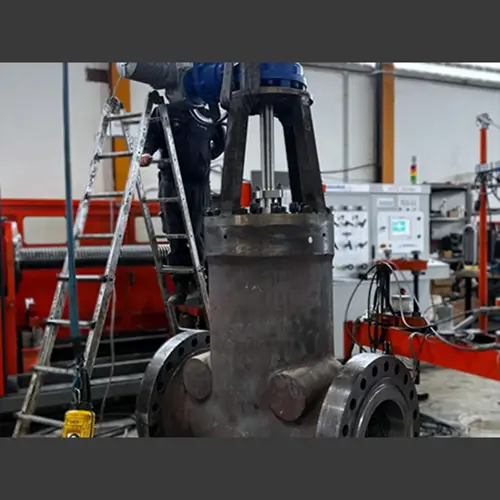

Pressure Seal Gate Valves

These valves are suited for applications such as main feed water, steam, and high-temperature, high-pressure systems in power and process plants. The wedge can be designed as flexible, parallel, or split type to meet specific operational needs.

PRODUCT OFFERING

Valve Type
  • OS&Y, Rising Stem, Welded in Seats
  • 2” to 24” (other sizes are available upon request)
  • 900#, 1500#, 2500#, 4500#
  • Straight through, Y-type, Angle type
  • Carbon Steel (A105 and WCB)
  • Low Alloys (F1 – WC1, F11 – WC6, F22 – WC9)
  • High Alloys (F91 – C12A – F92)
  • Stainless Steel
  • ASME B 16.34 or EN 12516
  • Materials 100% European.
  • Full traceability of all components provided with strict application of the re-stamping procedure.
  • Special attention to Wedge and Seats, normally with Stellite 6 overlay, machined properly and lapped to guarantee tightness.

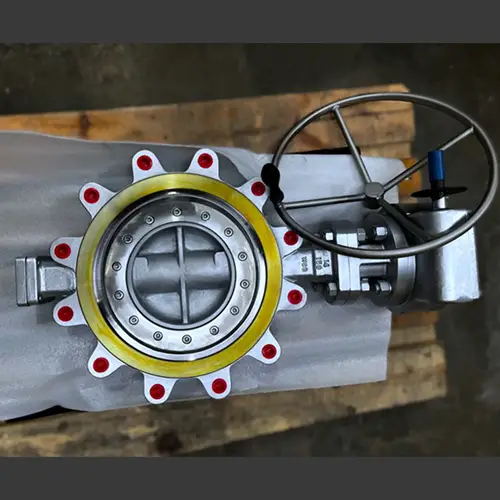

Butterfly Valves

Butterfly valves offer a lightweight, cost-effective, and high-performance solution for flow control, with low-pressure drop and quick operation. Our butterfly valves are optimized for extreme conditions, including cryogenic applications, high-temperature service, and highly corrosive environments. Designed for critical applications in refining, LNG, offshore, and power generation, they deliver reliable and precise flow control.

PRODUCT OFFERING

Product Type
  • Concentric, Double Offset, Triple Offset
  • 2” to 120”
  • 150# to 2500# (other pressure classes available upon request)
  • : Carbon Steel (A105-WCB)
  • Low Alloys (F1 – WC1, F11 – WC6, F22 – WC9)
  • High Alloys (F91-C12A, F92, Stainless Steels),
  • Nickel Alloys (Inconel, Monel, Hastelloy, Duplex, Super Duplex)
  • Manual, Gear, Electric, Pneumatic, Hydraulic, Gas-over-Oil
  • API 609, ASME B16.34, ISO 15848-1, EN 593
  • Materials 100% European.
  • Full traceability of all components provided

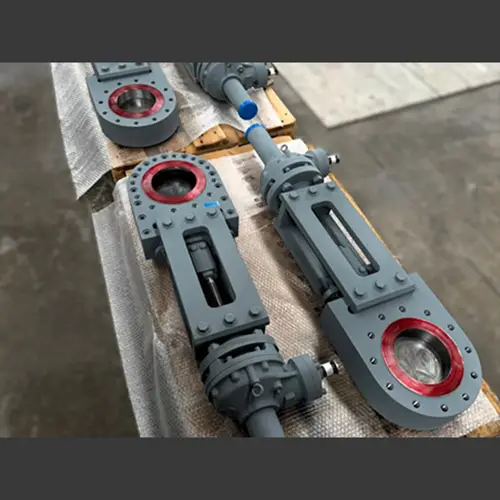

Knife & Slide Gate Valves

Knife and slide gate valves are heavy-duty shutoff valves, ideal for handling slurries, powders, and abrasive materials. Our range includes severe service designs for mining, wastewater, and chemical applications, ensuring bi-directional sealing, minimal pressure drop, and extended service life.

PRODUCT OFFERING

Product Type
  • Unidirectional, Bi-Directional, Rising & Non-Rising Stem
  • 2” to 48”
  • 150# to 600#
  • : Carbon Steel
  • Low Alloys
  • High Alloys
  • Stainless Steel
  • Nickel Alloys (Inconel, Monel, Hastelloy, Duplex, Super Duplex)
  • Manual, Gear, Electric, Pneumatic, Hydraulic, Gas-over-Oil
  • MSS SP-81, API 598
  • Materials 100% European.
  • Full traceability of all components provided with strict application of the re-stamping procedure.

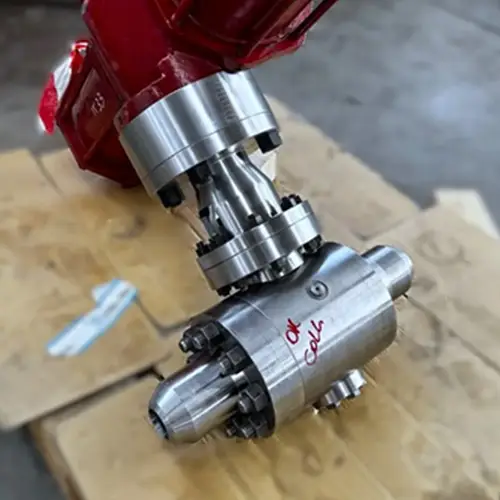

Ball & Double Block and Bleed Valves

Ball Valves are designed accordingly API 6D and are available in Split Body, 2 or 3 pieces, Floating and Trunnion, Single or Double Block & Bleed, Top Entry & Fully welded. Design can be reduced & full bore, soft & metal seated for all types. Stem Extension for Cryogenic Service or underground installation can be provided. Piggable design on demand.

PRODUCT OFFERING

Size Range
  • 1/2” to 48” (other sizes are available upon request)
  • 150# to 2500# and all intermediate classes (4500# on request)
  • Carbon Steel (A105 and WCB),
  • Low Temperature Carbon Steel (LF2 and LCB)
  • Low Alloys (F1 – WC1, F11 – WC6, F22 – WC9)
  • High Alloys (F91 – C12A – F92)
  • Stainless Steel (SS304, SS316)
  • Nickel Alloys: Inconel, Monel, Hastelloy, Duplex, Super Duplex
  • Soft (PEEK, PTFE, RPTFE, Viton) and metal seated (ENP, tungsten Carbide, Chromium Carbide)
  • API 6D
  • Full traceability of all components provided with strict application of re-stamping procedures.

Elektrim Motor

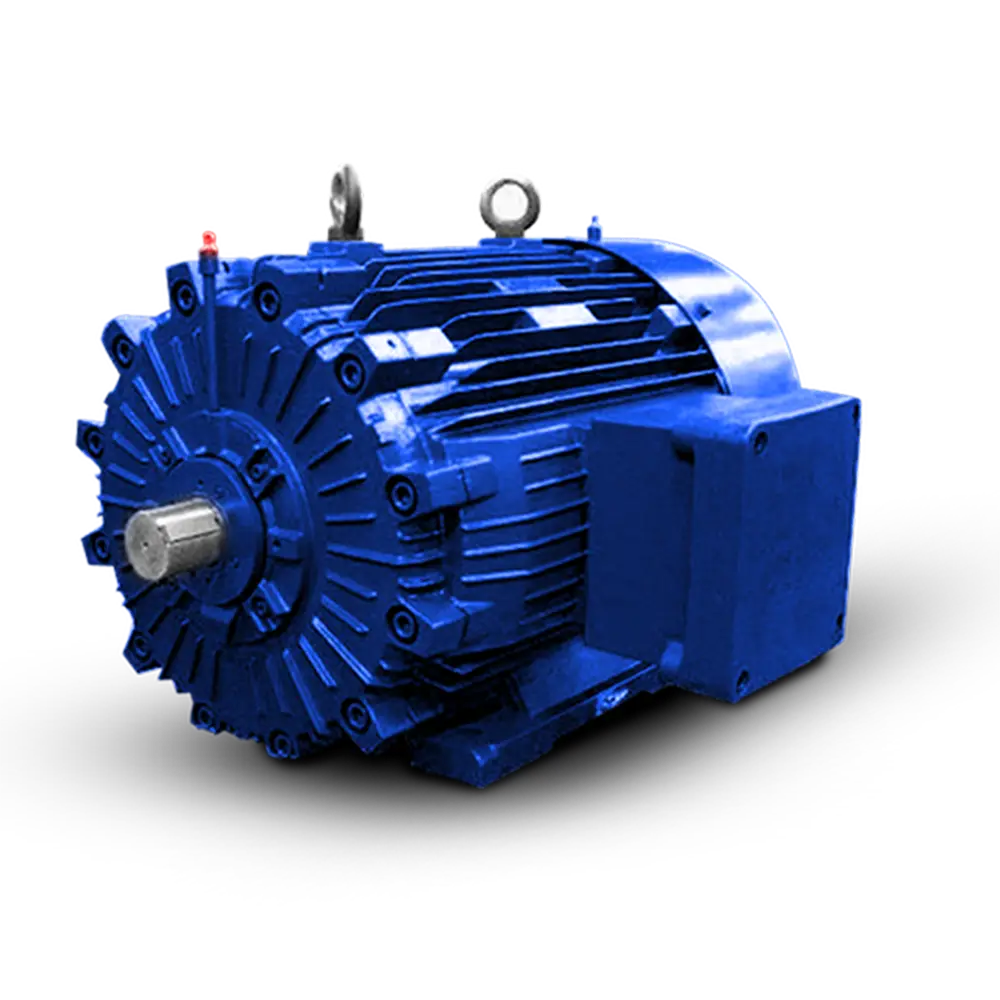

Explosion Proof Motors

The Explosion-proof Motor Series is manufactured according to international IEC standards and conforms to the international ATEX certificate for all frame sizes and many different ex-proof requirements. This series of motors is designed to conform to the standards of Exd IIA T4, Exd IIB T4, and Exd IIC T4.

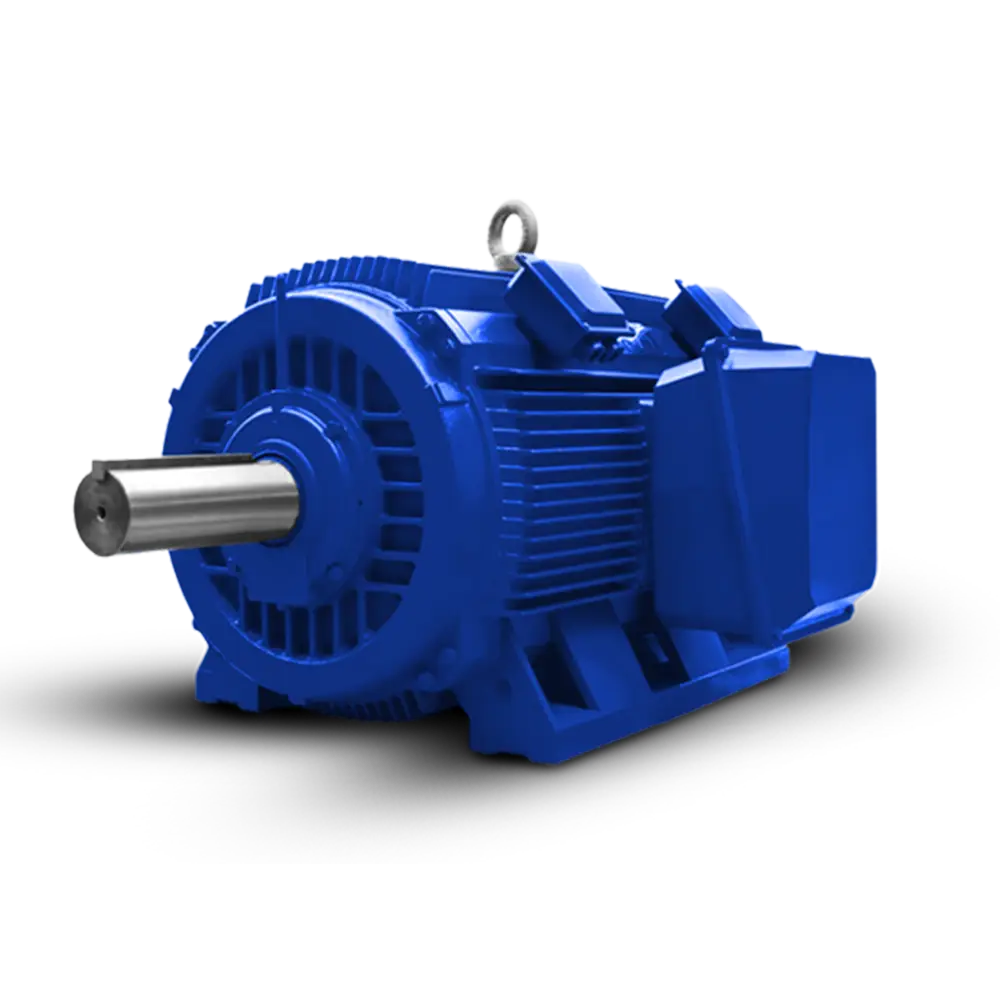

NEMA Motor

NEMA EPACT and Premium Efficiency 3-Phase Motors are available in cast iron TEFC and ODP styles, ranging from 1HP to 250HP and in frame sizes 143T through 449T. Customers can choose from a service factor of 1.15 or 1.25, and NEMA Design B or C options. These motors are commonly used in applications such as pumps, compressors, and fan industries, as well as in energy-saving applications, conveyor systems, gear reducers, and applications that require Design C torque.

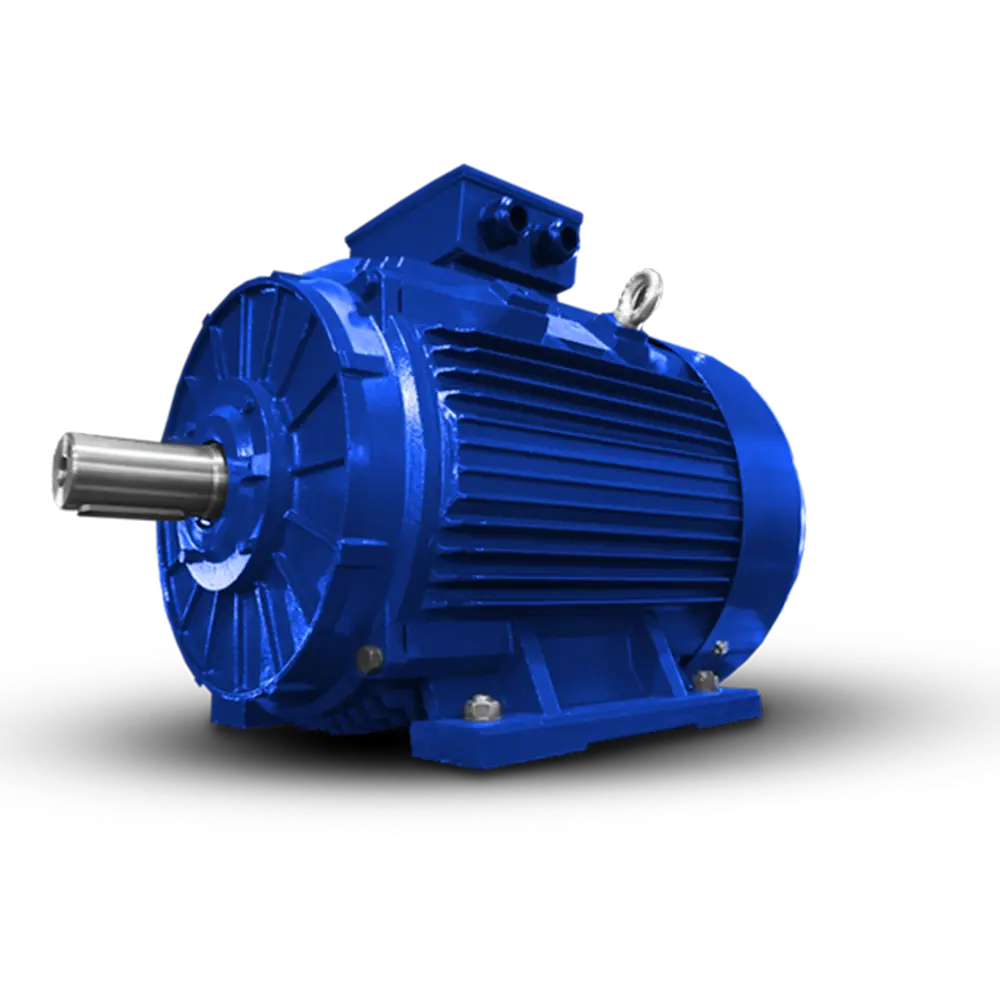

Induction AC Motors

The EMM series of three-phase asynchronous motors are constructed as Totally Enclosed Fan Cooled (TEFC) and are available in both cast iron and aluminum housing. They encompass our latest design with many new features, are made of selected high-quality materials, and conform to the IEC Standard. Some unique design features include our special conical pro-ventilation fan cover, detachable feet for cast iron housing, and an extended aluminum housing range up to frame size 200. EMM series motors come with Protection IP55, Insulation Class F, and NSK imported bearings as standard. These series of motors can be used for general drives.

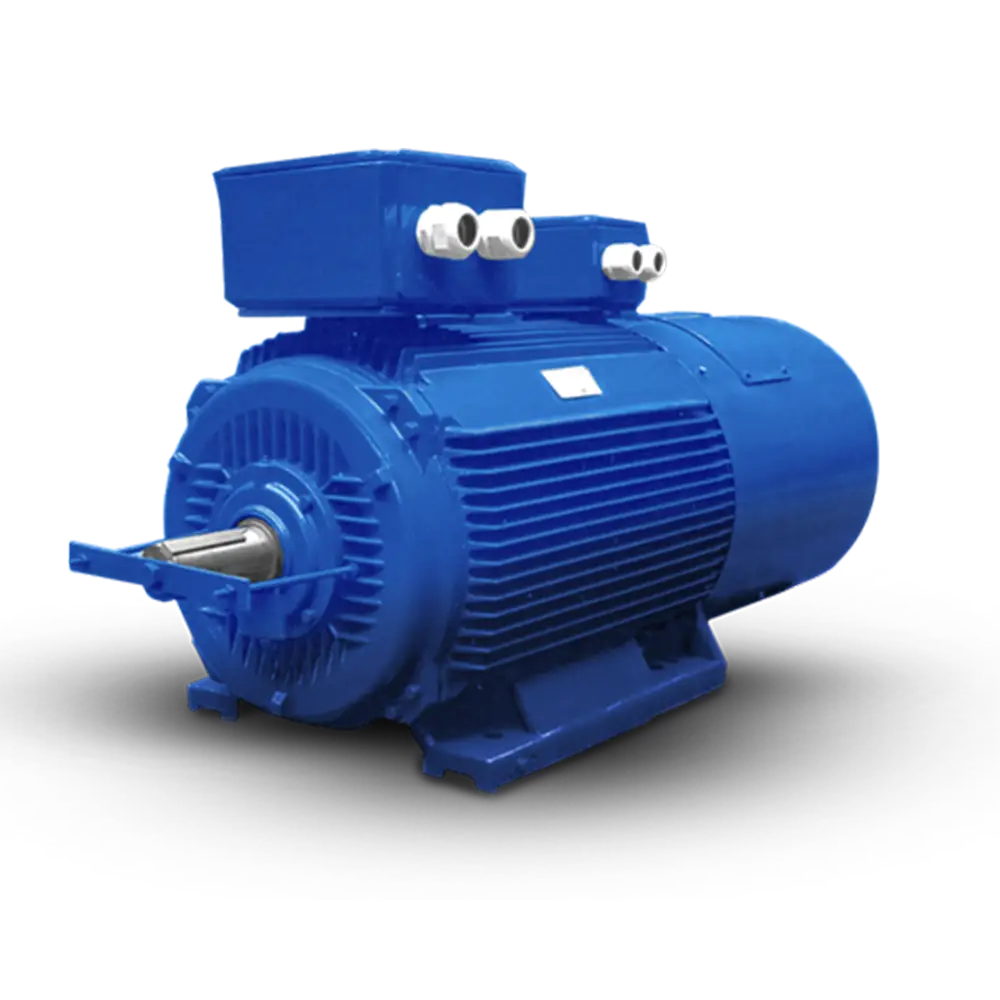

Slip Ring Motors

The Slip Ring range of three-phase asynchronous motors is ideal for meeting the specific needs of clients who require high torque motors. These motors are exclusively housed in cast iron due to their heavy-duty nature and well-designed exterior, while also conforming to all IEC standards. Our in-house designed slip ring device, featuring carbon brushes made from high-quality materials and adhering to European motor winding standards and technology, is included with every slip ring motor. These motors are suitable for use in all heavy-duty industries.
